SmartGauge (Tach/Fuel/Temp) [Vanagon]

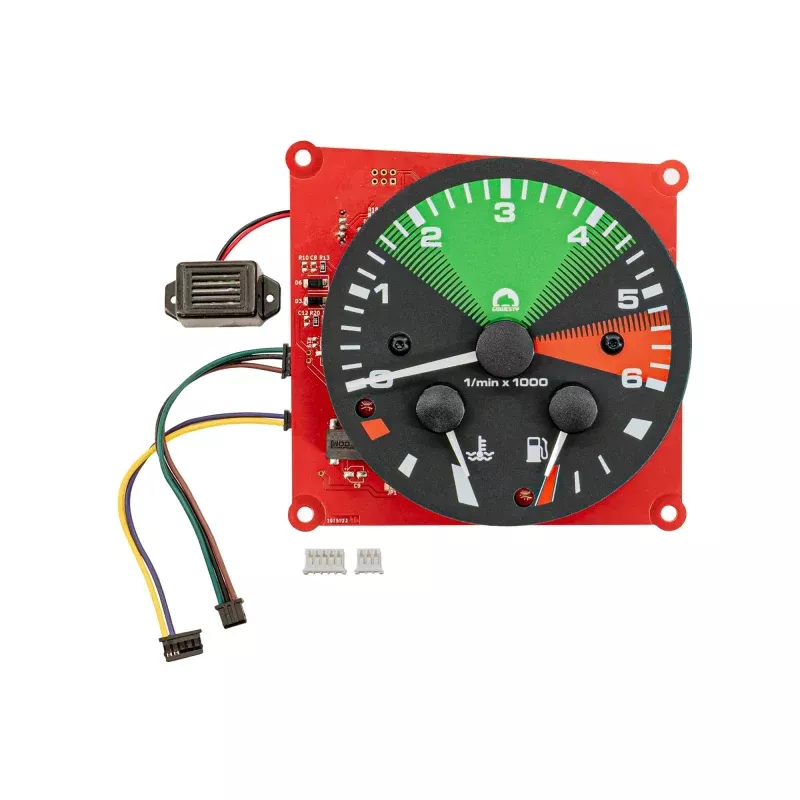

Thetach/fuel/temp SmartGauge assembly is a direct replacement for your existing combination gauge,Instrument Cluster Circuit Foil Replacement Kit required but NOT included!

Whether you have a tach/fuel/temp or (analog) clock/fuel/temp combination gauge(and would like a tachometer instead of that useless clock), this is an all-in-one, fully electronic solution. If any of the gauges(tach, analogue clock, temp or fuel)in your Vanagoninstrument cluster dont work, there are no new parts available to fix them. Additionally, good used gauges are difficult to find and costly. Even if your gauges are still working, this is an upgrade worth considering.Read on!

Fits: 1980-83 Vanagon Aircooled with Bosch EFI or carburetor(s) – Requires oil temp sender 1983-91 Vanagon Waterboxer with Bosch EFI,EFI, or carburetor(s) All watercooled gasoline engine conversions – VW Inline-4, 1.8T, Ford Zetec, Subaru VW TDI engine conversions. Does NOT work with one wire (non-TDI) diesel engine – Coming soon Engine conversions with single ignition coil/distributor ignition systems Selectable for 4,5,6, and 8-cylinder engine configurations

Kit Includes: Combination tach/fuel/temp SmartGauge Plug-and-play compatibility with theCircuit Foil Replacement Kit Complete PDF installation instructions via QR code

Features: Vintage look combination gauge to match your existing OEM speedometer or ourElectronic Speedometer All new parts. Modern design. Rugged and reliable componentry Comes with pre-calibrated fuel and temperature gauges Push-button calibration feature for fuel and temp gauges if needed Audible and visual alarms for low fuel, high coolant temp, and low coolant level Direct fit in the original instrument cluster housing, no modifications to housing required 4,5,6 & 8-cylinder engine selectable

Additional important considerations: Does not work with the original instrument cluster blue circuit foil Does not work with any aftermarket cluster foil replacements except thedesign

TheSmartGauge is designed to be plug-and-play with our Instrument Cluster Circuit Foil Replacement Kit – just follow the simple instructions included. If your instrument cluster has broken corners, grab our Instrument Cluster Corner Fix Kit for a quick repair. If your cluster has broken mounting tabs, check out our Instrument Cluster Mounting Tab Kit.Full product article: Tach/Temp/Fuel Combo Gauge: TheSmartGauge Solution

PDF INSTRUCTIONS

SmartGauge Instructions

FIT NOTES

If you have our Temperature Gauge Calibration Kit installed, please delete it prior to installation. It will provide an inaccurate signal to the tachometer.
