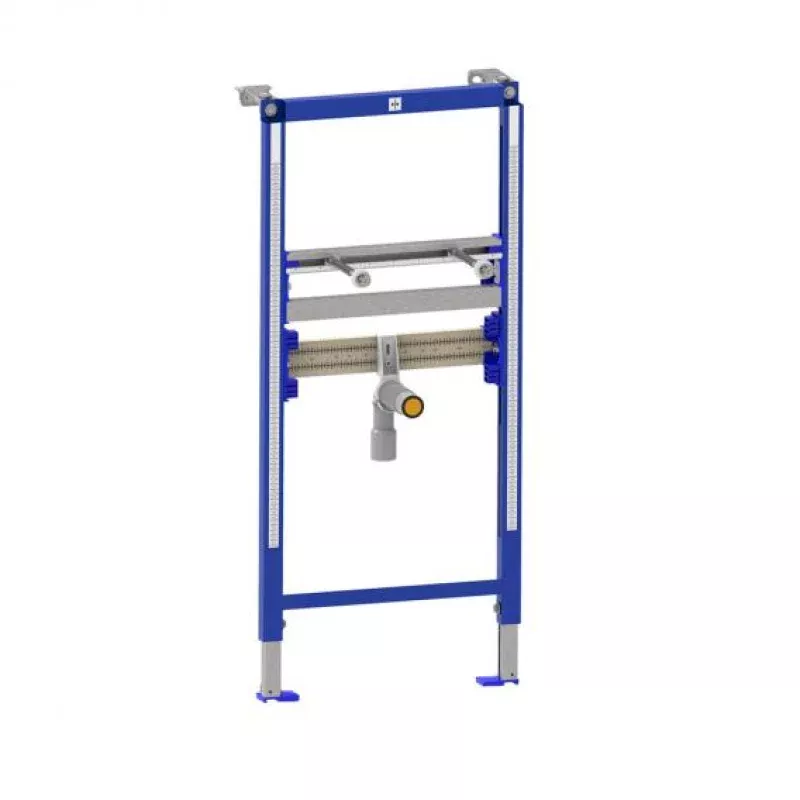

Simply mounted: LAUFEN LIS installation system for washbasins
With the LAUFEN LIS installation system for washbasins, you can reliably mount your bathroom ceramics in a drywall in combination with floorstanding fittings.
Adjustable for different wall thicknesses
The pre-assembled steel frame of the installation system can be flexibly used for different wall thicknesses thanks to depth adjustment. Thanks to height-adjustable washbasin fittings and feet as well as individually positionable water connections, attaching the bathroom ceramic is a breeze. Make things easy for yourself with proven technology from LAUFEN!
Product features
Application Purpose
- for mounting washbasins in combination with deck-mounted fittings
- for dry construction, completely pre-assembled
- floor structures 0 20 cm
Features
- powder-coated steel frame, self-supporting
- includes plywood panel with centimetre spacing for individual positioning of the water connections
- height-adjustable feet with practical self-locking mechanism for easy installation
- rotatable feet allow a variety of installation options – suitable for mounting with metal profiles
- height adjustable M8 washbasin fitting
- fixing distance washbasin: 5-36 cm
- includes waste bend DN 50/40
- Includes rubber sleeve for odour trap
- includes wall bracket: depth adjustable (in the range 13- 20.5 cm) to compensate for different wall thicknesses
- includes set of fittings
Please note
- for front-of-wall installation, a wall thickness of 80 mm is required
SpecificationsItem number:H9101000000001Series:LISModel no.:CWB100Material:steel/plywoodColour:blueWidth (cm):52.5Height (cm):112Depth (cm):13 Suitable:for deck-mounted fittingsConstruction:drywallShippingContains:
front-of-wall element, connection accessories, set of fittings
Packaging type:Parcel XLpdfProduct data sheet
