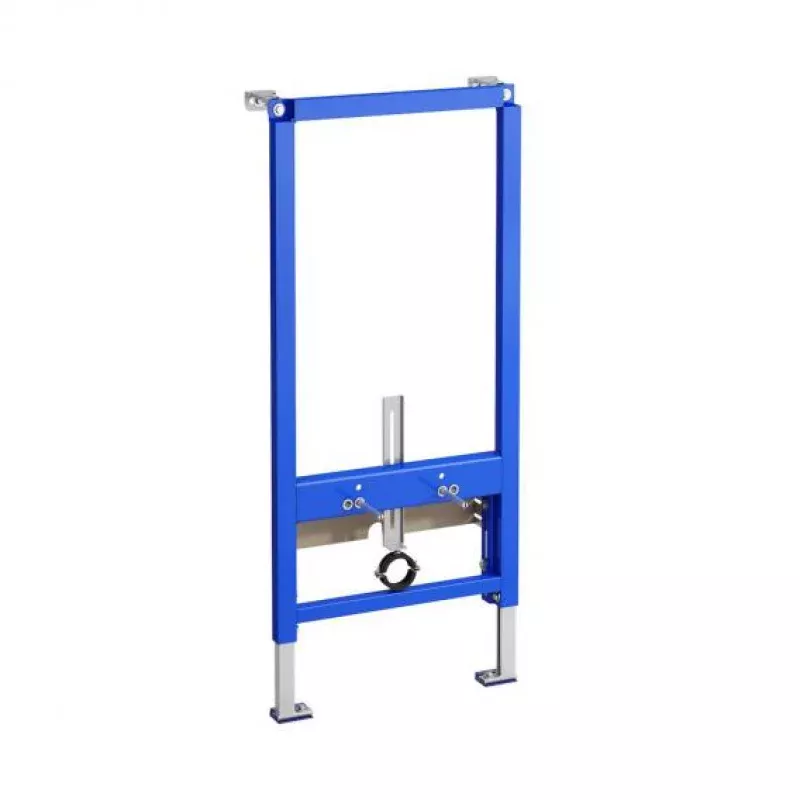

Durable and flexible: the LAUFEN LIS installation system for wall-mounted bidets
The LAUFEN LIS installation system for wall-mounted bidets offers you all the advantages for reliable installation. Get to know the quality of LAUFEN.
Numerous installation options
The installation system features height-adjustable feet with self-locking mechanism, making installation particularly convenient. Thanks to the rotatable feet, you benefit from various installation options. In addition, the self-supporting steel frame ensures a long service life for the installation system. It comes with a plywood panel with centimetre spacing so that the water connections can be positioned individually. The installation system also includes: bidet fitting, waste bend, rubber sleeve for the odour trap, depth-adjustable wall bracket and a set of fittings. Choose quality from LAUFEN!
Product features
Application Purpose
- for mounting wall-mounted bidets in combination with deck-mounted fittings
- for dry construction, completely pre-assembled
- floor structures 0 – 20 cm
Features
- powder-coated steel frame, self-supporting
- includes plywood panel with centimetre spacing for individual positioning of the water connections, height adjustable
- height-adjustable feet with practical self-locking mechanism for easy installation
- rotatable feet allow a variety of installation options – suitable for mounting with metal profiles
- includes bidet M12fitting with screw spacing of 180 or 230 mm
- includes waste bend DN 50/40 X 40
- includes rubber sleeve for odour trap
- includes wall bracket: depth adjustable (in the range 13.5 – 20.5 cm) to compensate for different wall thicknesses
- includes set of fittings
Please note
- for front-of-wall installation, a wall thickness of 80 mm is required
SpecificationsItem number:H8926600000001Series:LISModel no.:CB1Country variants:complies with German standardsColour:blue Width (cm):52.5Height (cm):112Depth (cm):13.5Suitable:for bidetsConstruction:drywallOperation:from the frontShippingContains:
pre-wall element, installation parts
Packaging type:Parcel XLpdfProduct data sheet
