Product features

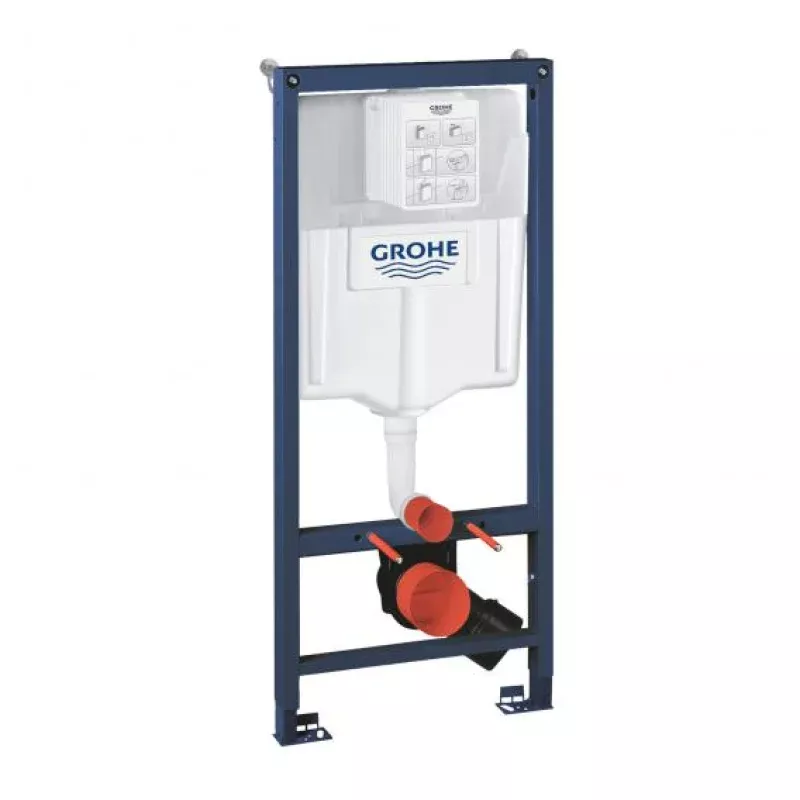

Grohe Rapid SL 2 in 1 Set Mounting Element for Toilet Cistern GD 2
- for for pre-wall installations or studded walls
- for dry-cladding, completely pre-assembled
- for single or series installation
- powder-coated steel frame, self-supporting
- 2 toilet fixing bolts with ceramic fittings, distance of fixing bolts 180/230 mm
- quick adjustment, lockable height
- 1.13 m installation height
- set of fittings, TV approved, DIN approved
- integrated cistern GD 2
- pneumatic discharge valve offering 2 modes of operation:
- dual flush
- start/stop flush
- flush volume: 6-9 litres, factory setting for large button: 6 litres, small button: 3 litres
- small maintenance opening, insulated against condensation
- water supply from left/right or back
- fittings group I
- water supply connection 1/2″ with integrated angle valve and tool-less flexible hose union
- no tools required for the installation of the inspection shaft including protection during construction phase, for vertical or horizontal use
- depth adjustable reducer DN 90/110 mm, PP outlet bend DN 90, including inlet and outlet connecting set
- less sound transmission in the walls (GROHE Whisper)
- fast, easy and hassle-free installation (GROHE QuickFix Plus)
Wall-Mounting
- for pre-wall installation
- for the attachment of the elements to masonry or in front of studded walls
- continuous depth adjustment from 130 – 230 mm
- panel support for single or rail installation
SpecificationsItem number:38536001Series:Rapid SLCountry variants:complies with German standardsMaterial:metal/plasticWidth (cm):50Height (cm):113Depth (cm):23Suitable:for wall-mounted toiletsConstruction:drywallActuation:frontShippingContains:
pre-wall element, cistern, connection accessories, set of fittings
Packaging type:ParcelpdfProduct data sheetpdfAssembly instructions
